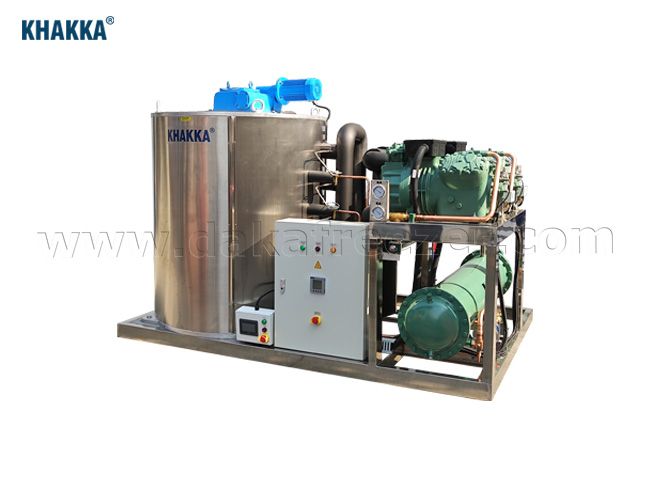

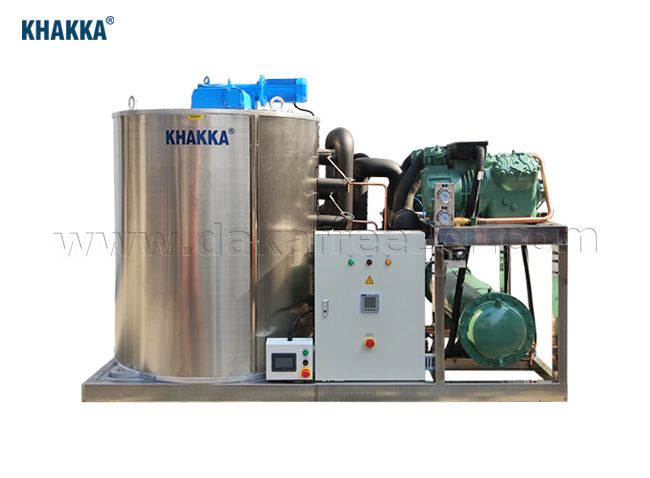

Flake Ice Machine 10 Ton Per Day
Fresh Water /Salt Water
Air Cooling/Water Cooling
Flake Ice Thickness: 1.5-2.2mm
Refrigerant: R22/R404A
With PLC Controller
Flake Ice Machine 10T/24H
KHAKKA industry flake ice machines are mainly used in aquatic processing, chemical pigments, biological pharmacy
and scientific experiments etc. Ice production from 3t/d to 15t/d which can meet the industrial ice demand.
Advantages of the flake ice machine:
1. The ice machine has high ice efficiency and small loss of cooling capacity.
2. Good quality of the flake ice and is dry and not bonded.
3. The flake ice produced by the flake ice machine is rich in variety, simple in structure
4. PLC programmable controller of the flake ice machine, with stable performance, random control
5. The flake ice machine is easy to operate, high standard of hygiene
6.The flake ice machine with the perfect fault protection device.
Technical Parameters
Model | DFI-10T |
Capacity | 10000kg/24h |
Necessory cooling capacity | 60KW |
Compressor Cooling capacity | 66kW |
Evaporating temp. | -20℃ |
Condensing temp. | 40℃ |
Standard water temperature | 20℃ |
Power install | 39KW |
Compressor | 28HP *2Piston/Screw 40HP |
Reduction gear | 0.75KW |
Water pump | 0.37KW |
Cooling pump | 2.2KW |
Cooling Tower | 1.5KW |
Power supply | 380V/50Hz/3P |
Water pressure | 0.1Mpa-0.5Mpa |
Refrigerant | R22/R404a |
Ice temperature | -5℃ |
Water pipe | 3/4” |
Net weight | 2100kg |
Machine size | 2700*1900*1500mm |
Cold storage room | 2500*2600*2100mm |
KHAKKA medium-size industry flake ice machine (ice production 3T/4T/5T/8T/10T/15T/24H)
1.Standard conditions: Ambient temperature 25℃, water inlet temperature 15℃, evaporating temperature -22℃, condensing temperature 40℃.
2. Thickness of the flake ice: 1.5mm-2.2mm,it can be adjustable.
3. The above parameters will be changed subject to the technical invotation without further notice.
Would you like some more information or to order your new machine….Email Us or call +86-20-81778146
