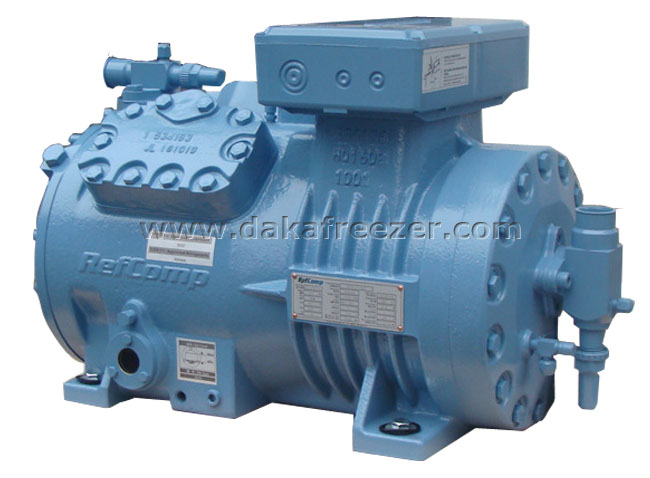

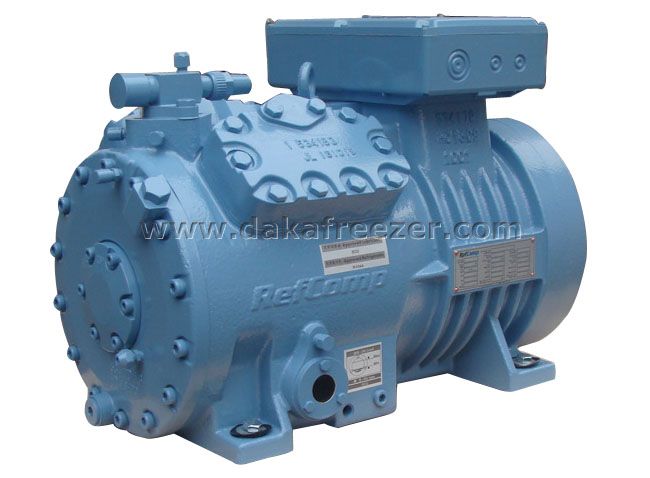

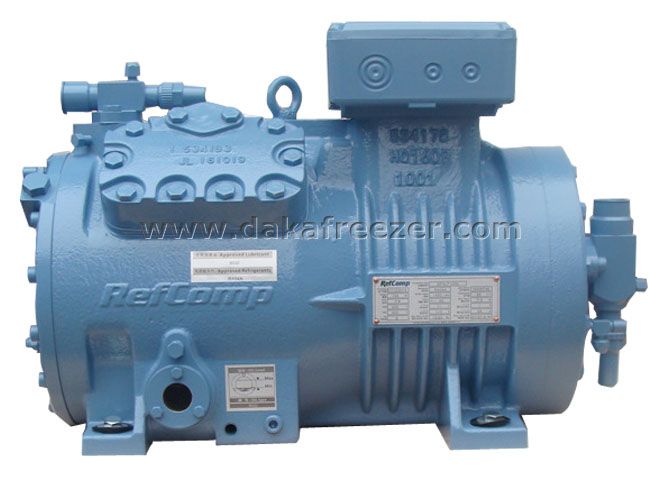

RefComp Piston Compressor

RefComp Semi- hermetic piston compressors are widely used not only in commercial and industrial refrigeration.
●Operating pressure can reach as high as 28bar.
●Filter, cut- off valve, temperature sensor are integrated into one,and the overall size of the compressor is small.
●With the crankshaft (including balancing weight) designed byRefComp, the operation is smooth and with low- vibration.
●High efficiency, high strength, low vibration, low gas pulsation and lownoise, which is achieved through new technology.
●Cooling capacity can be controlled according to different loads.
●Motor protection module.
●The embedded safety valve joins the high pressure side and lowpressure side to prevent the internal pressure from exceedingthe safety threshold.
●Unique structure design and spacing layout: motor is effectivelycooled down by using subcooled refrigerant gas between thesuction shut- off valve and the inlet of the piston.

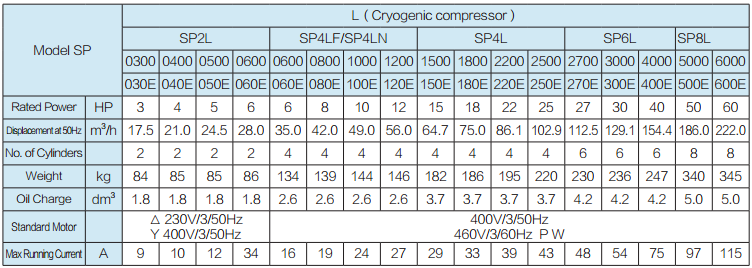

Technical Parameters

For more details,please contact us at +86 20-81778146 or email to daka@dakafreezer.com
