Flake Ice Machine 40 T Per Day

  1. Flake Ice Machine 40 Ton Per Day

  2. Fresh Water /Salt Water

  3. Air Cooling/Water Cooling

  4. Flake Ice Thickness:  1.5-2.2mm

  5. Refrigerant:  R22/R404A

  6. With PLC Controller


Product Details:

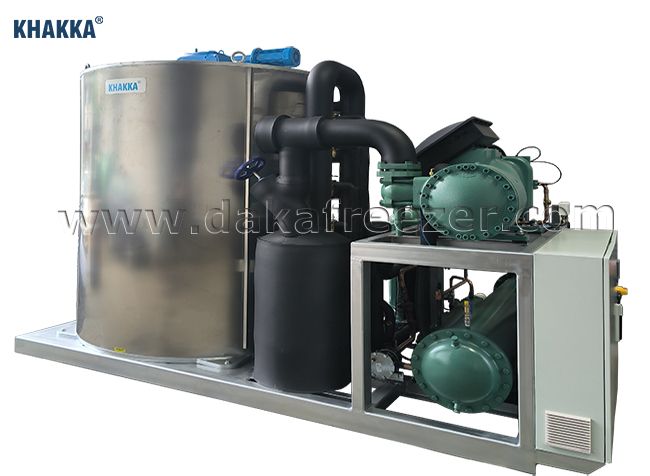

Flake Ice Machine 40T/24H

KHAKKA Large-scale industrial flake ice machine(ice production 20T/25T/30T/40T/50T/24H )

Large-scale industrial flake ice machines are specialized in nuclear power construction, environmental protection engineering and railway construction etc.

The large industrial flake ice machines are equipped with Refcomp screw compressor to ensure sufficient ice production and improve energy efficiency.

Advantages of the flake ice machine:

1. The ice machine has high ice efficiency and small loss of cooling capacity.

2. Good quality of the flake ice and is dry and not bonded.

3. The flake ice produced by the flake ice machine is rich in variety, simple in structure

4. PLC programmable controller of the flake ice machine, with stable performance, random control

5. The flake ice machine is easy to operate, high standard of hygiene

6.The flake  ice machine with the perfect fault protection device.

Technical Parameters

ModelDFI-40T
Capacity40000kg/24h
Necessory cooling capacity240KW
Compressor Cooling capacity265kW
Evaporating temp.-20℃
Condensing temp.40℃
Standard water temperature20℃
Power install165KW
Compressor200HP  147KW
Reduction gear2.2KW
Water pump11KW
Cooling Tower2.2KW
Power supply380V/50Hz/3P
Water pressure0.1Mpa-0.5Mpa
RefrigerantR22/R404a
Ice temperature-5℃
Water pipe3/4”
Net weight3800kg
Machine size4500mm×2100mm×2500mm
Cold storage room3800*4300*2300mm

1.Standard conditions: Ambient temperature 25℃, water inlet temperature 15℃, evaporating temperature -22℃, condensing temperature 40℃.

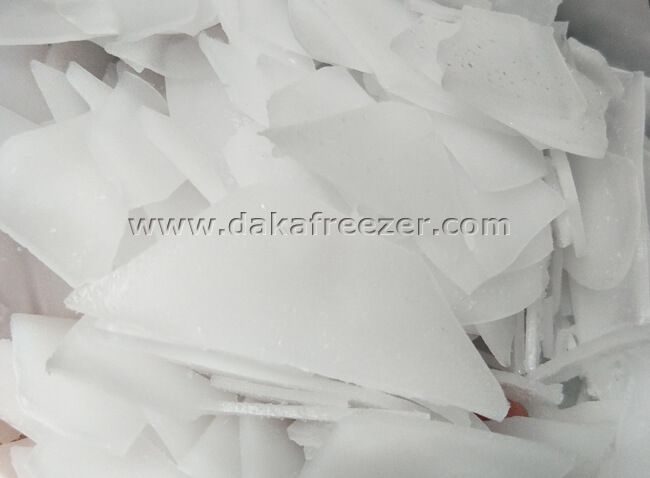

2. Thickness of the flake ice: 1.5mm-2.2mm,it can be adjustable.

3. The above parameters will be changed subject to the technical invotation without further notice.


Would you like some more information or to order your new machine….Email Us  or call 86-20-81778146
