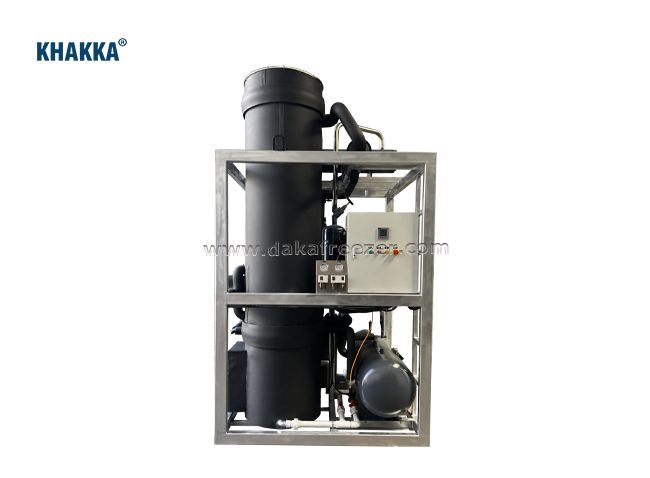

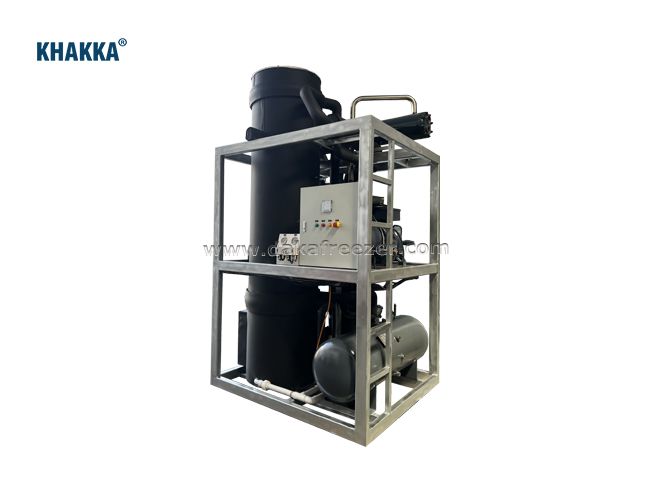

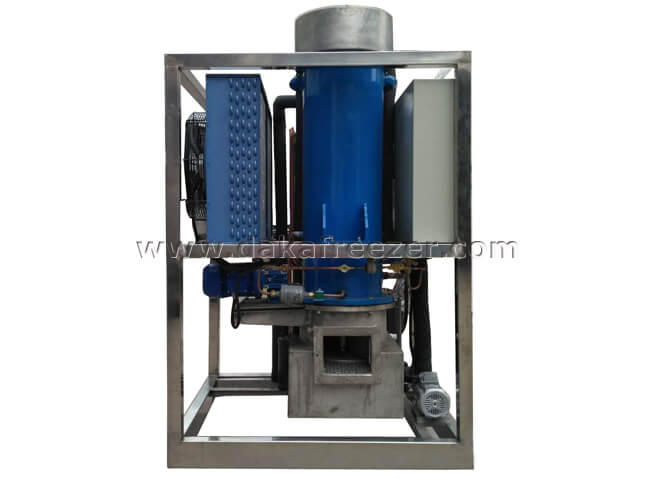

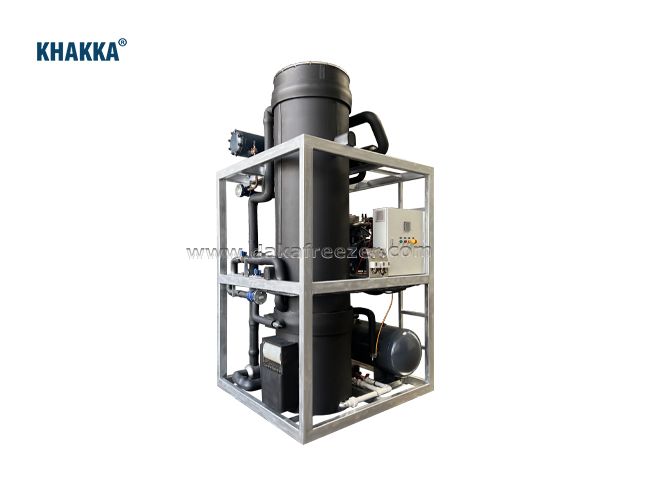

Tube Ice Machine 10 Tons Per Day

Inquire Now None

Product Details:

Tube Ice Machine/ice production 10000KG Per Day(DTI-10T)

KHAKKA tube ice machine with high quality, high hygiene standard tube ice making device. Evaporator material

Made of stainless steel SUS304 or stainless steel SUS316L, PE material, the tube ice is odorless and clean, hygienic standard

Accurate to meet international certification requirements.table and reliable performance with low failure rate,

The tube ice machine is equipped with various protections such as low water level, water flow, compressor

high and low pressure, oil pressure, etc.Continuous operation of the fault, maintaining good operation and

stable ice production at an ambient temperature of 5 ° C ~ 40 ° C

Tube Ice Machine Features:

1. The shape of the ice is hollow, the color is transparent, environmentally friendly,

2.no sharp edges and corners, and will not damage the surface of the cold collection.

3. Tube ice length 40mm, outer diameter: φ22mm, φ29mm, φ38mm...

4. Suitable for storage and transportation, applicable to various fields.

5. No need to deal with ice cubes separately.

Technical Parameters:

Model	DTI-1T	DTI-2T	DTI-3T	DTI-5T	DTI-8T	DTI-10T	DTI-15T	DTI-20T	DTI-25T	DTI-30T	DTI-40T
Ice production (Tons / 24 hours)	1	2	3	5	8	10	15	20	25	30	40
Cooling capacity (KW)	7.5	15	22.5	37.5	52.5	71.5	107	143	178	214	296
Compressor power (HP)	5	10	15	25	30	50	70	100	120	140	180
Reducer power (KW)	0.25	0.37	0.37	0.55	0.75	1.1	2.2	2.2	2.2	2.2	3
Pump power (KW)	0.24	0.24	0.55	0.75	0.75	1.5	1.5	1.5	2.2	2.2	2.2
Ice water consumption (Kg / hour)	49	98	152	253	354	506	759	1012	1265	1518	2024
Total power (KW)	4.5	8.5	12.5	20.5	24.5	37.5	56.5	79	94.5	110	140.5
Net weight (KG)	720	950	1050	1550	2350	3500	4200	5680	6500	7950	9140
