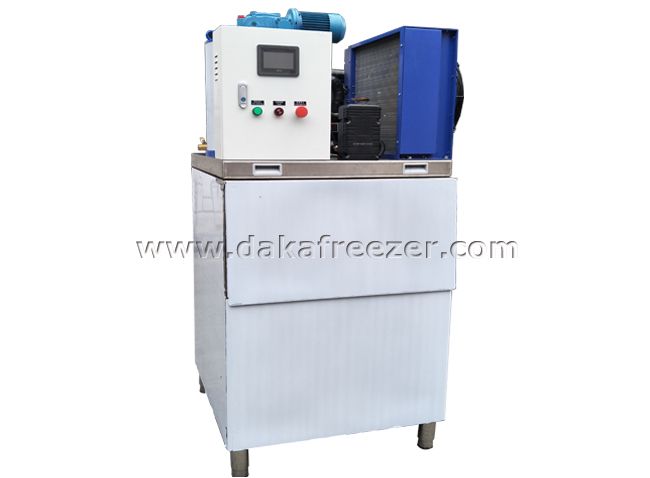

Fresh Water Flake Ice Machine

If the installation of the flake ice machine is a small flake ice machine, the installation is relatively simple, and it is only necessary to simply connect the water according to the requirements.

First, the air-cooled split ice machine installation

1. Installation of the flake ice machine: After the refrigeration unit and the ice bucket ice making part are installed and fixed, the liquid pipe and the return pipe of the same pipe diameter are respectively used to connect the unit with the ice bucket; After confirming the pressure-proof leak detection of the welded pipeline part, the nitrogen gas is vented, and the connected welded pipe and the ice bucket portion are evacuated by the vacuum pump; after the vacuum is exhausted, the ball valve is connected to the system.

2. Water supply system installation: water supply pressure requirement of 0.1-0.5MPa is better; connect the water source to the water inlet of the ice machine, the overflow of the water tank is connected to the place where the water can be drained by the water pipe, and the drain port is only used when cleaning the water tank. .

3. The main power supply installation: the chip ice machine equipment power supply is a three-phase five-wire system, three fire lines, a zero line, a ground line, according to the line marking, connected to the power supply; if the device can not start Start the running device again by adjusting the phase sequence of any two phase lines of the three phase lines.

Note: Before starting the ice machine, you must ensure that the compressor oil and refrigerant have been added.

Second, the air-cooled whole piece of ice machine

1. Installation of the flake ice machine: Place the ice machine on top of the ice storage bin and confirm that the ice floes are aligned with the center of the ice storage bin.

2. Installation of water supply system: the water supply pressure requirement is 0.1-0.5MPa; the water source is connected with the water inlet of the ice machine, and the overflow pipe on the water tank is connected to the place where the water can be drained. The drain port is only used when cleaning the water tank. .

3. The main power supply installation: the equipment power supply is a three-phase five-wire system, three fire lines, a zero line, a ground line, according to the line marking, connected to the power supply; if the equipment can not start, you can three phases After any two phase lines of the line adjust the phase sequence, the running device is started again.

Third, water-cooled flake ice machine

1. Installation of the flake ice machine: Place the ice machine on top of the ice storage bin and confirm that the ice floes are aligned with the center of the ice storage bin.

2. Water system installation: water supply pressure requirements of 0.1MP-0.5MP is better; the water source and the ice machine inlet is connected, the overflow of the water tank is connected to the place where the water can be drained, the drain is only when cleaning the tank use.

3. Installation of the tower: According to the marking on the machine, connect the cooling tower, water pump and condenser. Pay attention to the direction of the inlet and outlet when connecting. The cooling tower water pump and the power cable of the fan are connected to the corresponding wiring reserved in the electric control box. end.

4. The main power supply installation: the equipment power supply is a three-phase five-wire system, three fire lines, a zero line, a ground line, according to the line mark, connected to the power supply; if the device can not start, you can put three phases After any two phase lines of the line adjust the phase sequence, the running device is started again.

Tip: The ice machine equipment is installed, try to communicate with the manufacturer, guide the installation, avoid unnecessary troubles, and bring damage to the flake ice machine equipment.

Sheet ice machine installation notes:

1. Power requirements: single-phase power: 220V/50HZ, three-phase power: 380V/50HZ. Strictly follow the parameter description on the flake ice machine.

2. Installation location requirements: good ventilation, avoid moisture, away from heat dissipation equipment and avoid direct sunlight, the ambient temperature of 5 ° C ~ 35 ° C for the unit's optimal operating temperature.

3. The ground on which the unit is placed must be level and the drainage system is perfect.

4. The user is required to provide the water source required by the ice machine. In order to make the unit operate reliably and safely, the water pressure should be controlled within the range of 0.1 MPa to 0.6 MPa.

5. The northern cold season pay attention to the insulation of the water pipe, so as to avoid the freezing of the inlet pipe.

6. To ensure that the water level is not lower than the ice bucket back to the bottom of the mouth, the shutdown is not higher than the upper edge of the ice bucket back.
